3D Trigonometry

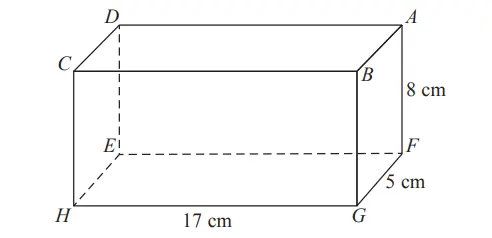

Question 1:





ABCDEFGH is a cuboid

The cuboid has
length 17 cm
width 5 cm
height 8 cm

• Calculate the size of angle AHF.

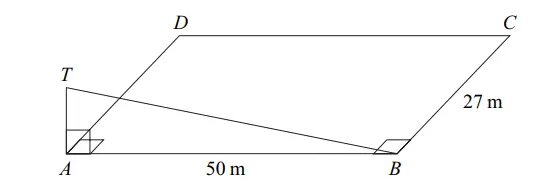

Question 2:











ABCD is a horizontal rectangular field.
AB = 50 m.
BC = 27 m.
AT is a vertical mast.

• The angle of elevation of T from B is 19°.
  Calculate the length of AT.
  Give your answer correct to 3 significant figures.
• Calculate the distance from C to T.
  Give your answer correct to 3 significant figures.







Question 3:

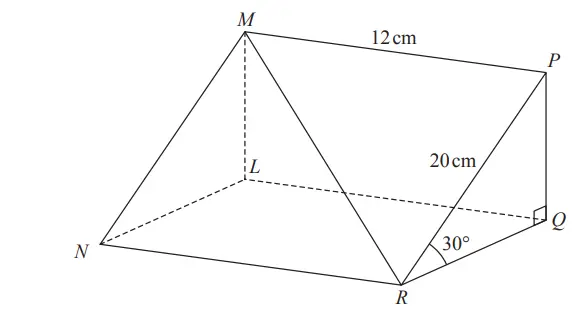

Question 4:





Triangle PQR is a cross section of the prism.
PR = 20 cm
MP = 12 cm
Angle PRQ = 30 degree
Angle PQR = 90 degree



• Calculate the size of the angle that the line MR makes with the plane RQLN.

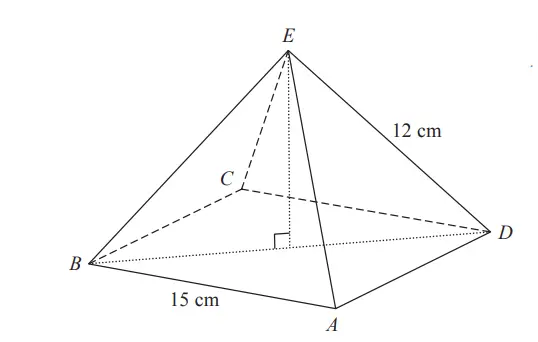

Question 5:



ABCDE is a square-based pyramid.

AE = BE = CE = DE = 12 cm
AB = 15 cm

• Calculate the size of angle DEB.









Question 6:













Question 6:





Question 7:









Question 8:

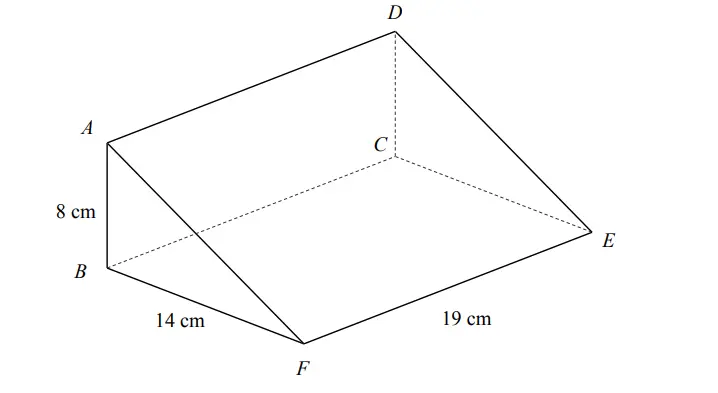

The diagram shows a triangular prism ABCDEF
AB = 8 cm
BF = 14 cm
EF = 19 cm



• Calculate the distance between A and E.
• Calculate the angle between AE and the plane BCEF.
